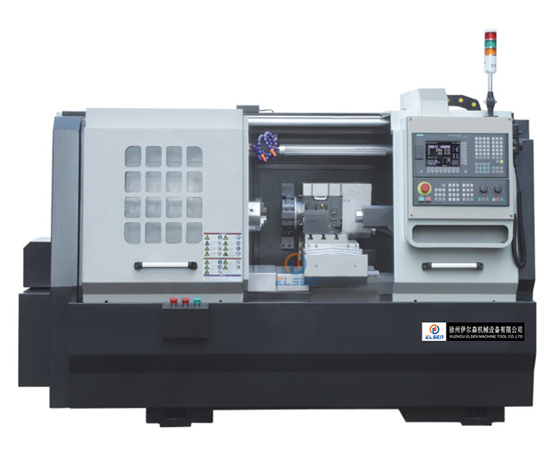

Xuzhou Elsen Machine Tool Co., Ltd
include the tailstock,linear guinder way
♦Linear guideways are protected by stainless steel telescoping guards for maximum protection and extending life.

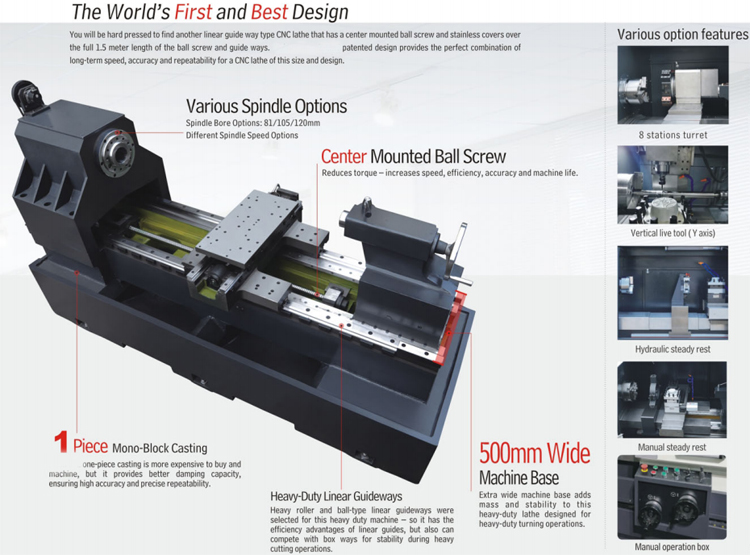

♦Ballscrew are out in the middle of linear guideway without side friction torque, have a better dynamic property and are more stable over long term.
♦Servo X/Z axis motor. Spindle can be driven with a frequency inverter motor or servo motor.
♦Various control systems, toolposts, and chuck are available to configure machine for the user's individual needs.

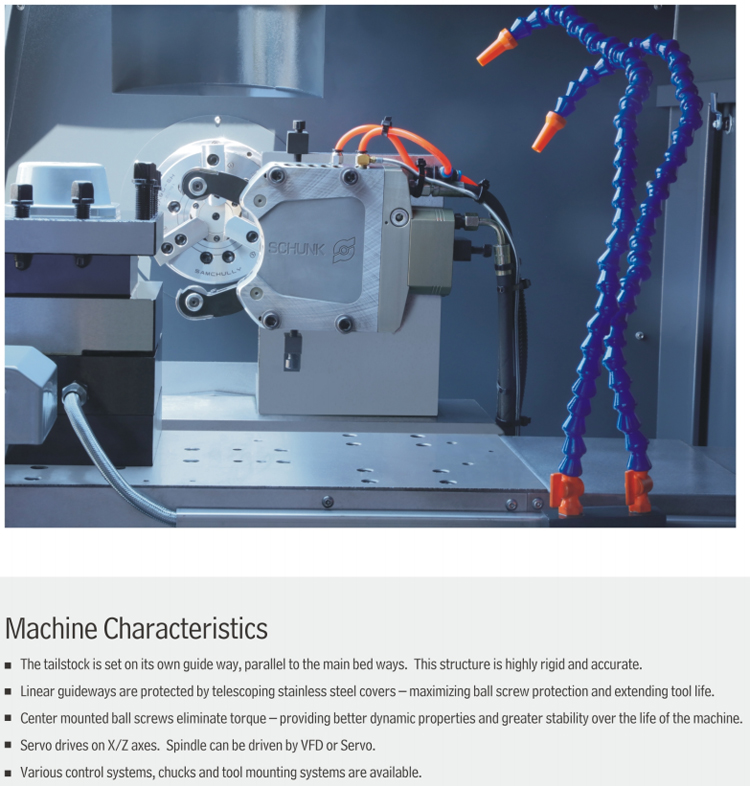

♦The tailstock configuration is available on flat bed linear guideway structure, improving accuracy.
Specifications
Unit
Parameters
Chuck size
inch
6",Op:8"
Bed type/guideway
Flat/Linear guider,
Max swing over bed
mm
φ350
Max length of workpiece
mm
380(4 toolpost)
Op:300(8 station turret)
Max swing over slide
mm
φ140
Spindle bore
mm
φ48
φ62
Max dia of through hole
mm
φ40
φ52
Spindle nose
A2-5
A2-6
Spindle speed
rpm
3000
2000
Op:4500
Op:3500
Op:4000
Main motor power
kw
4.0,Op:5.5
X /Z axis travel
mm
280/380
X/Z rapid traverse
m/min
25/15
Type
4-station toolpost
Op:8-station turret
Op:gang type tooling
No.of tool stations
nos
4+2,Op:8+2
Type of tailstock
Manual,Op:Hydraulic
Taper of tailstock quill
MT4
Travel of tailstock quill
mm
80
Power capacity
KVA
13
Overall dimension(L*W*H)
mm
2200x1500x1600
Weight
kg
2100
|
Manual 3 Jaw Chuck |
| 4-station turret,plus gang tool plate |
| Linear guider way |
| Auto Lubrication System |
|
Auto Coolant System |
|
Tri-color Alarm light |
| Optional configurations |
| 8/12-station turret |
| Different chucks and different collets |
| Siemens/ Fanuc/Mitusbishi/GSK cnc controller |
|
Chip conveyor |
|
C axis and Live turret |
| Tool setter |
