Model

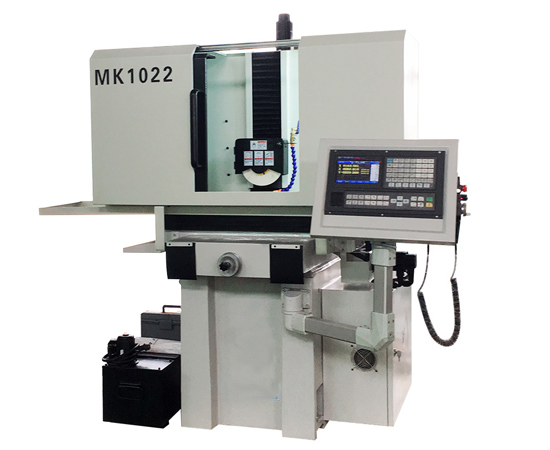

MYK1022

Working table

Table Size(L × W)

mm

540×250

Max movement of worktable(L × W)

mm

560×260

T-Slot(Number×Width)

mm

1×14

Grinding head

Distance from table surface to spindle center

mm

450

Wheel size(Outer diameter×width×Inner diameter)

mm

Ø200×20×Ø31.75

Wheel speed

r/min

2850

Feed amount

Longitudinal speed (left and right)of working table

m/min

3-20

Cross speed (front and rear of working table

m/min

0.5-15

Vertical automatic feed amount of grinding head

mm

0.005-0.05

Rapid up and down speed of grinding head(Approximation)

m/min

0-6

Motor power

Spindle motor

kw

1.5

Coolant pump motor

W

40

Up and down servo motor

W

1

Cross servo motor

W

1

Hydraulic system

Hydraulic motor

KW

1.5

Working pressure

MPa

3

Oil bank capacity

L

80

Max flow

L/min

18

Working precision

The parallelism of working surface to base level

mm

300:0.005

Surface roughness

μm

Ra0.32

Weight

Net

kg

1000

Gross

kg

1150

Chuck size

mm

500×250

Overall dimension(L×W×H)

mm

1680x1220x1720

Package dimension(L×W×H)

mm

1630x1290x1940
