Xuzhou Elsen Machine Tool Co., Ltd

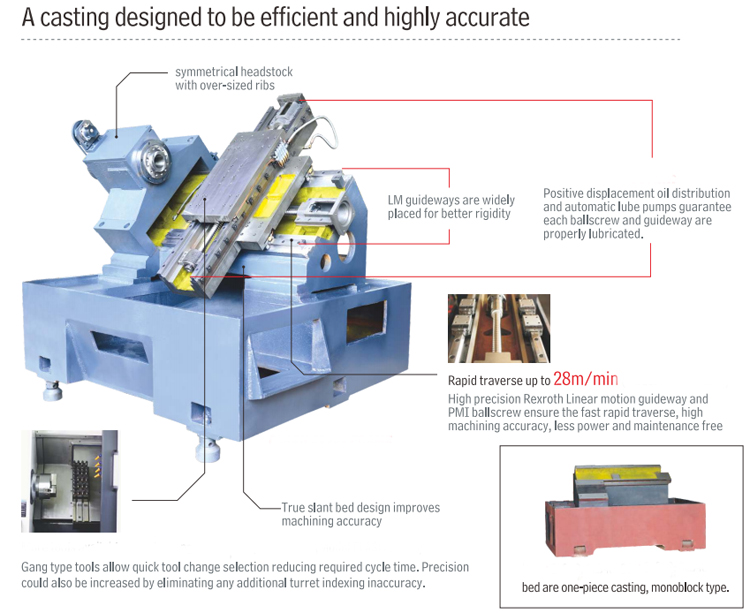

1. Cast Mono-Block,35 degree slant bed structure.
2. Compact Design (No Tailstock) Perfect for Automation options

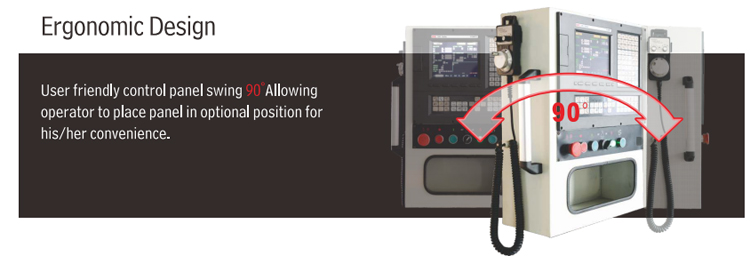

3. Adjustable "Ergonomic' Operator Control Panel
4. Servo Spindle Motor--High Speed with Constant Torque
5. Highly Efficient Turret-Indexing,Bi-Directional,Non-Lifting
6. Handheld Electronic Hand Wheel
7. Schneider Superior Quality Electrical Components
8. Cylindrical Roller LM and Cylindrical Roller Bearings
Item
Specifications
Unit
Parameters
Capacity
Chuck size
inch
12",Op:15"
Max swing over bed
mm
φ550
Max length of workpiece
mm
400
Max swing over slide
mm
φ290
Spindle
Spindle bore
mm
φ105
φ105
φ120
Max dia of through hole
mm
φ91
φ91
φ110
Spindle nose
type
A2-11
A2-8
A2-11
Spindle speed
rpm
1000
1800
1000
Main motor power
kw
11.0/15.0,Op:15.0/18.0
Axis
X axis travel
mm
280
Z axis travel
mm
400
X/Z rapid traverse
m/min
15/20
Turret
Center height
mm
100
No. of tool stations
no.s
8,Op:12
Tool shank size
mm
25x25
Structure
Slant bed degree
35°
Guideway type

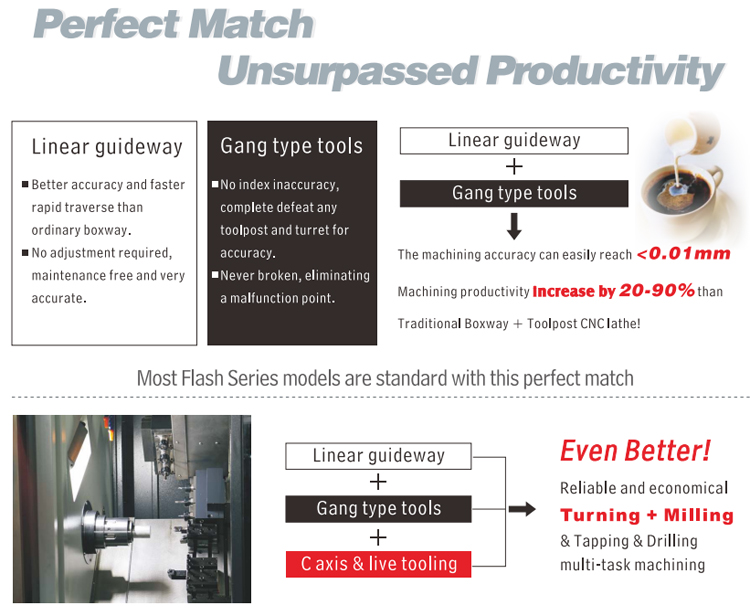

Linear guide way
General information
Power capacity
KVA
18
Overall dimension(L*W*H)
mm
2700x1700x1900
Weight
kg
4800
|
Hydraulic 3 Jaw Chuck |
| 8-station turret |
| Linear guider way |
| Auto Lubrication System |
|
Auto Coolant System |
|
Tri-color Alarm light |
| Optional configurations |
| 12-station turret |
| Different chucks and different collets |
| Siemens/ Fanuc/Mitusbishi/GSK cnc controller |
|
Chip conveyor |
|
C axis and Live turret |
| Tool setter |
