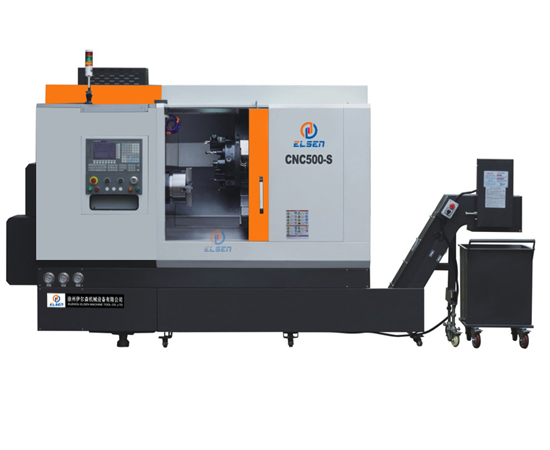

1. Cast Mono-Block,35 degree slant bed structure.
2. Compact Design (No Tailstock) Perfect for Automation options
3. Adjustable "Ergonomic' Operator Control Panel
4. Servo Spindle Motor--High Speed with Constant Torque
5. Highly Efficient Turret-Indexing,Bi-Directional,Non-Lifting
6. Handheld Electronic Hand Wheel
8. Cylindrical Roller LM and Cylindrical Roller Bearings
7. Schneider Superior Quality Electrical Components
Item
Specifications
Unit
Parameters
Capacity
Chuck size
inch
10",Op:8"
Max swing over bed
mm
φ500
Max length of workpiece
mm
400
Max swing over slide
mm
φ270
Spindle
Spindle bore
mm
φ81
φ62
Max dia of through hole
mm
φ70
φ52
Spindle nose
type
A2-8
A2-6
Spindle speed
rpm
1600
2000
Op:2500
Op:3500
Op:4000
Main motor power
kw
7.5/11.0,Op:11.0/15.0
Axis
X axis travel
mm
280
Z axis travel
mm
400
X/Z rapid traverse
m/min
15/20
Turret
Center height
mm
100
No. of tool stations
no.s
8,Op:12
Tool shank size
mm
25x25
Structure
Slant bed degree
35°
Guideway type
Linear guide way
General information
Power capacity
KVA
16
Overall dimension(L*W*H)
mm
2700X1730X1900
Weight
kg
4500
|

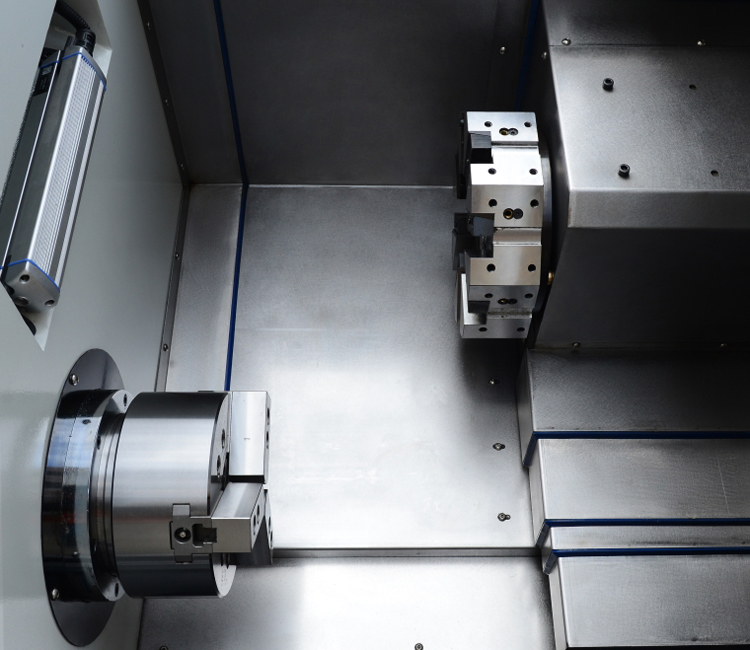

Hydraulic 3 Jaw Chuck |
| 8-station turret |
| Linear guider way |
| Auto Lubrication System |
|
Auto Coolant System |
|
Tri-color Alarm light |
| Optional configurations |
| 12-station turret |
| Different chucks and different collets |
| Siemens/ Fanuc/Mitusbishi/GSK cnc controller |
|
Chip conveyor |
|
C axis and Live turret |
| Tool setter |
