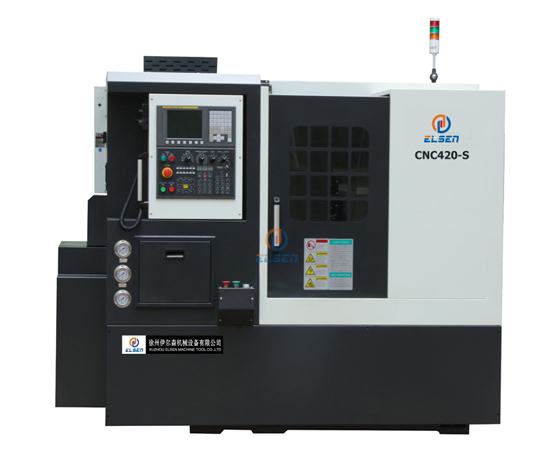

Xuzhou Elsen Machine Tool Co., Ltd
1. Cast Mono-Block,35 degree slant bed structure.
2. Compact Design (No Tailstock) Perfect for Automation options
3. Adjustable "Ergonomic' Operator Control Panel
4. Servo Spindle Motor--High Speed with Constant Torque
5. Highly Efficient Turret-Indexing,Bi-Directional,Non-Lifting
6. Handheld Electronic Hand Wheel
7. Schneider Superior Quality Electrical Components
Item
Specifications
Unit
Parameters
Capacity
Chuck size
inch
6",Op:8"
Max swing over bed
mm
φ420
Max length of workpiece
mm
320
Max swing over slide
mm
φ220
Spindle
Spindle bore
mm
φ62
φ48
φ55
Max dia of through hole
mm
φ52
φ40
φ46
Spindle nose
type
A2-6
A2-5
A2-5
Spindle speed
rpm
2000
3000
2500
Op:3500
Op:4500
Op:4000
Op:4000
Op:5000
Main motor power
kw
5.5/7.5,Op:7.5/11.0
Axis
X axis travel
mm
250
Z axis travel
mm
320
X/Z rapid traverse
m/min
12/20
Turret
Center height
mm
80
No. of tool stations
no.s
8,Op:12
Tool shank size
mm
25x25,Op:20x20
Structure
Slant bed degree
45°
Guideway type
Linear guide way
General information
Power capacity
KVA
13
Overall dimension(L*W*H)
mm
2050x1550x1850
Weight
kg
2650
|
Hydraulic 3 Jaw Chuck |
| 8-station turret |
| Linear guider way |
| Auto Lubrication System |
|
Auto Coolant System |
|
Tri-color Alarm light |
| Optional configurations |
| 12-station turret |
| Different chucks and different collets |
| Siemens/ Fanuc/Mitusbishi/GSK cnc controller |
|
Chip conveyor |
|
C axis and Live turret |
| Tool setter |
