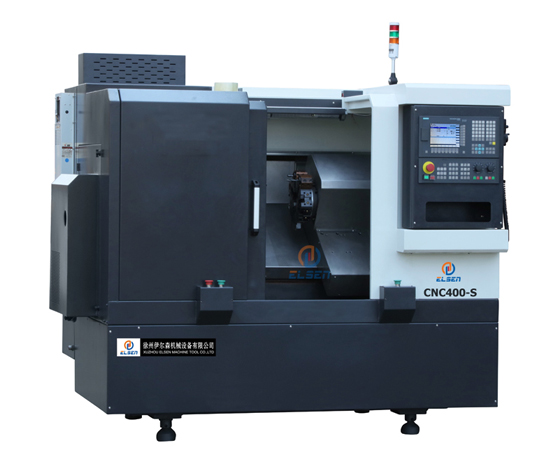

CNC400-S
    Publish time 2020-04-22 16:05
CNC400-S


1. Cast Mono-Block,35 degree slant bed structure.

2. Compact Design (No Tailstock) Perfect for Automation options

3. Adjustable "Ergonomic' Operator Control Panel

4. Servo Spindle Motor--High Speed with Constant Torque

5. Highly Efficient Turret-Indexing,Bi-Directional,Non-Lifting

6. Handheld Electronic Hand Wheel
7. Schneider Superior Quality Electrical Components

Item Specifications Unit Parameters
Capacity Chuck size inch 6",Op:8"
Max swing over bed mm φ400
Max length of workpiece mm 230
Max swing over slide mm φ200
Spindle Spindle bore mm φ48 φ55 φ62 φ81
Max dia of through hole mm φ40 φ46 φ52 φ70
Spindle nose type A2-5 A2-5 A2-6 A2-8
Spindle speed rpm 3000 2500 2000 1600
Op:4500 Op:4000 Op:3500
Op:5000 Op:4000
Main motor power kw 3.7/5.5,Op:5.5/7.5
Axis X axis travel mm 155
Z axis travel mm 230
X/Z rapid traverse m/min 20/25
Turret Center height mm 63
No. of tool stations no.s 8,Op:12
Tool shank size mm 20x20,Op:16x16
Structure Slant bed degree 35°
Guideway type Linear guide way
General informaton Power capacity KVA 11
Overall dimension(L*W*H) mm 2050x1450x1900
Weight kg 2100

Standard Features
Hydraulic 3 Jaw Chuck
8-station turret
Linear guider way
Auto Lubrication System
Auto Coolant System
Tri-color Alarm light
Optional configurations
12-station turret
Different chucks and different collets
Siemens/ Fanuc/Mitusbishi/GSK cnc controller
Chip conveyor
C axis and Live turret
Tool setter
