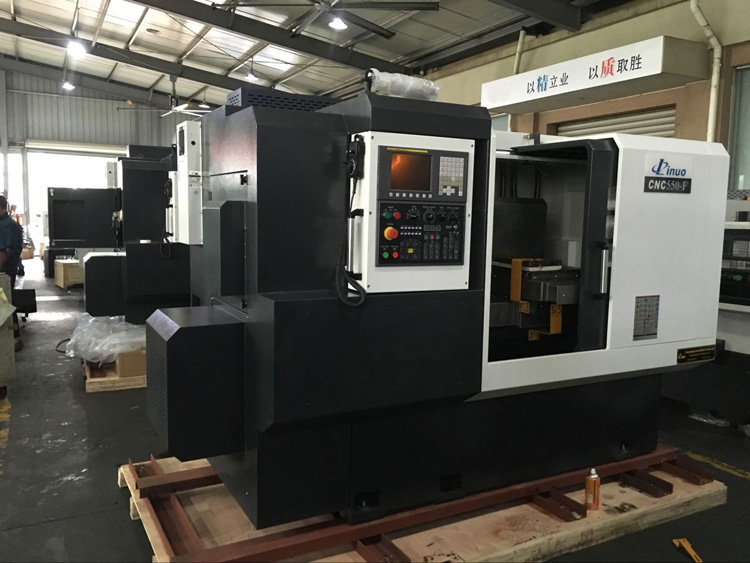

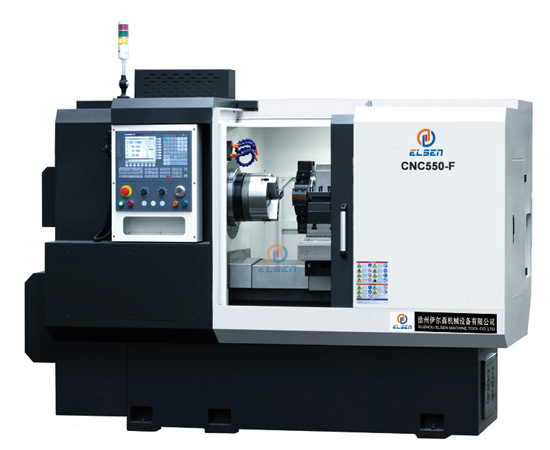

♦Linear guideways are protected by stainless steel telescoping guards for maximum protection and extending life.
♦Ballscrew are out in the middle of linear guideway without side friction torque, have a better dynamic property and are more stable over long term.
♦Servo X/Z axis motor. Spindle can be driven with a frequency inverter motor or servo motor.
♦Various control systems, toolposts, and chuck are available to configure machine for the user's individual needs.
|
Item |
Specifications |
Unit |
Parameters |
|
Capacity |
Chuck/Collet |
type |
Manual chuck 12", Op:Hydraulic chuck 12" |
|
Bed type/guideway |
|
Flat/Linear guider |
|
Max swing over bed |
mm |
φ550 |
|
Max length of workpiece |
mm |
500 |
|
Max swing over slide |
mm |
φ360 |
|
Spindle |
Spindle bore |
mm |
φ105 |
|
Max dia of through hole |
mm |
φ91 |
|
Spindle nose |
|
A2-11 |
|
Spindle speed |
rpm |
1000 |
|
1800 |
|
|
Spindle motor power |
kw |
7.5,Op:11.0 |
|
Axis |
X /Z axis travel |
mm |
260/500,Op:350/500 |
|
X/Z rapid traverse |
m/min |
12/9 |
|
Tool Post |
Type |
|
4-station turret |
|
Op:8-station turret |
|
Op:Gang type |
|
No.of tool stations |
nos |
4-10 |
|
Size |
Power capacity |
KVA |
15 |
|
Overall dimension(L*W*H) |
mm |
2650x1360x1800 |
|
Weight |
kg |
2800 |
Standard Features
Manual 3-Jaw Chuck
|
4-Station Toolpost
|
| Without Tailstock
|
| Auto Lubrication System
|
Auto Coolant System
|
Work Lamp & Built In Safety Features
|
| Optional configurations
|
Hydraulic Chucks
|
| Siemens/ Fanuc/Mitusbishi/GSK cnc controller
|
8-station turret,Gang Type Tooling
|
Living Tooling
|
| Bar Feeder
|
