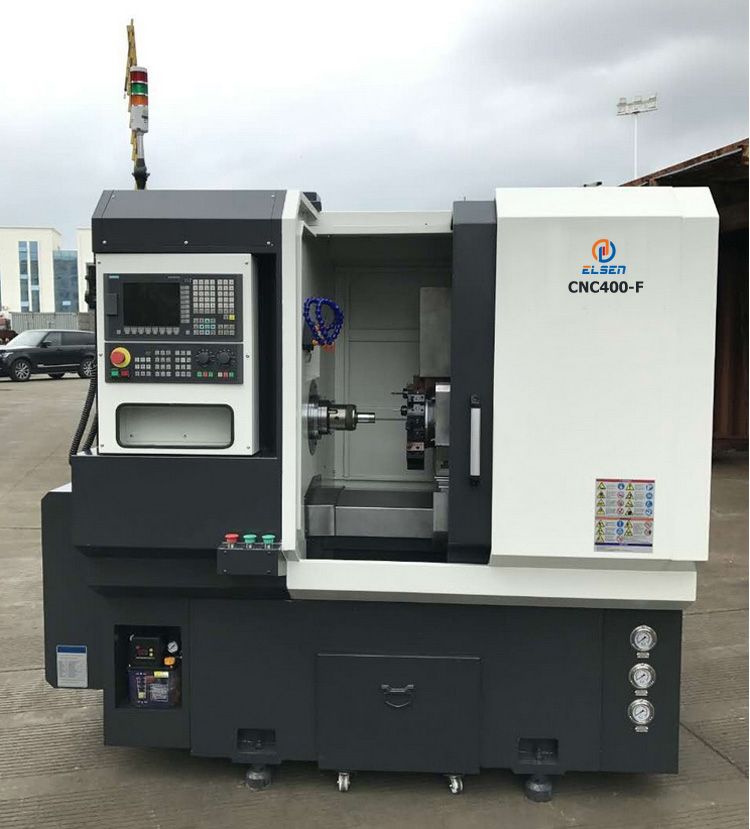

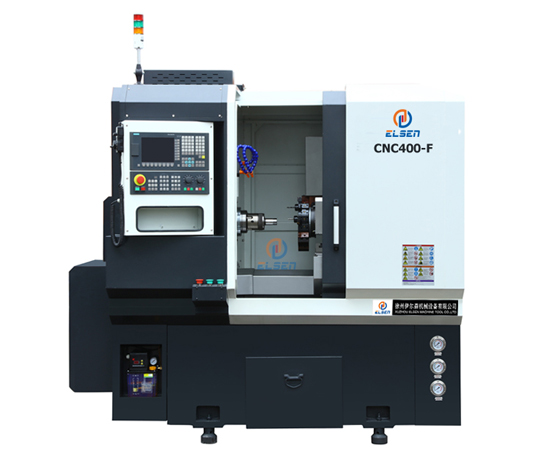

CNC400-F
Publish time 2020-04-22 16:05
♦Linear guideways are protected by stainless steel telescoping guards for maximum protection and extending life.
♦Ballscrew are out in the middle of linear guideway without side friction torque, have a better dynamic property and are more stable over long term.
♦Servo X/Z axis motor. Spindle can be driven with a frequency inverter motor or servo motor.
♦Various control systems, toolposts, and chuck are available to configure machine for the user's individual needs.
| Item | Specifications | Unit | Parameters | |
| Capacity | Chuck/Collet | type | Manual chuck 8", Op:Hydraulic chuck 8",6" | |
| Bed type/guideway | Flat/Linear guider | |||
| Max swing over bed | mm | φ400 | ||
| Max length of workpiece | mm | 320 | ||
| Max swing over slide | mm | φ180 | ||
| Spindle | Spindle bore | mm | φ62 | φ48 |
| Max dia of through hole | mm | φ52 | φ40 | |
| Spindle nose | A2-6 | A2-5 | ||
| Spindle speed | rpm | 2000 | 3000 | |
| Op:3500 | Op:4500 | |||
| Spindle motor power | kw | 5.5 | ||
| Axis | X /Z axis travel | mm | 380/350 | |
| X/Z rapid traverse | m/min | 20/20 | ||
| Tool Post | Type | 4-station turret | ||
| Op:8-station turret | ||||
| Op:Gang type | ||||
| No.of tool stations | nos | 4-10 | ||
| Size | Power capacity | KVA | 11 | |
| Overall dimension(L*W*H) | mm | 1950x1250x1620 | ||
| Weight | kg | 2000 | ||
Standard Features
|
Manual 3-Jaw Chuck |
|
4-Station Toolpost |
| Without Tailstock |
| Auto Lubrication System |
|
Auto Coolant System |
|
Work Lamp & Built In Safety Features |
| Optional configurations |
|
Hydraulic Chucks |
| Siemens/ Fanuc/Mitusbishi/GSK cnc controller |
|
8-station turret,Gang Type Tooling |
|
Living Tooling |
| Bar Feeder |
