Model

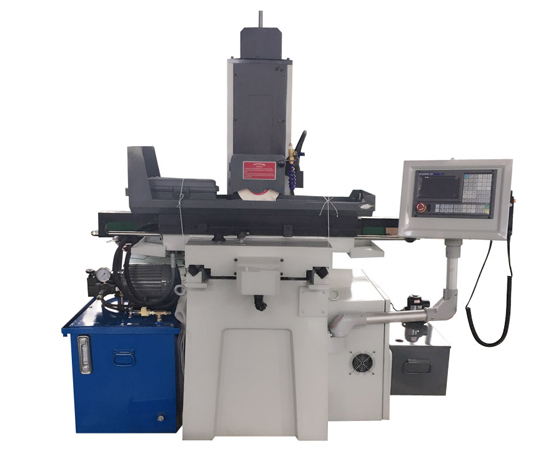

MYK820

Working table

Table Size(L × W)

mm

480×200

Max movement of worktable(L × W)

mm

530×220

T-Slot(Number×Width)

mm

1×14

Grinding Wheel

Distance from table surface to spindle center

mm

450

Wheel size(Outer diameter×width×Inner diameter)

mm

φ200×20×Φ31.75

Speed(r/min)

r/min

2850

Feed amount

Longitudinal speed (left and right)of working table

m/min

3-25

Cross feed amount(front and rear) of working table

m/min

0.5-15

Vertical manual feed amount of grinding head

mm

0.005—0.05

Rapid up and down speed of grinding head(Approximate value)

m/min

0-6

Motor power

Spindle motor

kw

1.5

Coolant pump motor

W

40

Lift servo motor

kw

0.75

Front and rear servo motor

kw

0.75

Hydraulic system

Hydraulic motor

KW

1.5

Working pressure

MPa

3

Tank capacity

L

80

Maximum flow rate

L/min

18

Working precision

The parallelism of working surface to base level

mm

300:0.005

Surface roughness

μm

Ra0.32

Weight

Net/Gross

kg

900/1000

Magnetic chuck size

mm

400x200

Overall dimension(L×W×H)

mm

1680x1140x1760

Package dimension(L×W×H)

mm

1630x1170x1940
