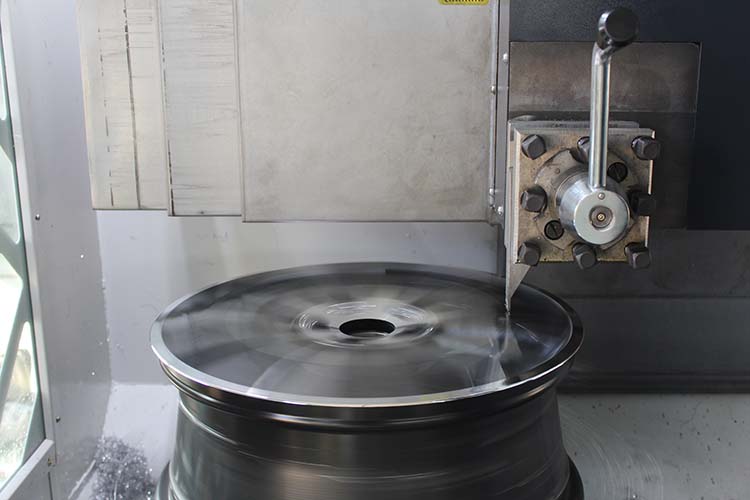

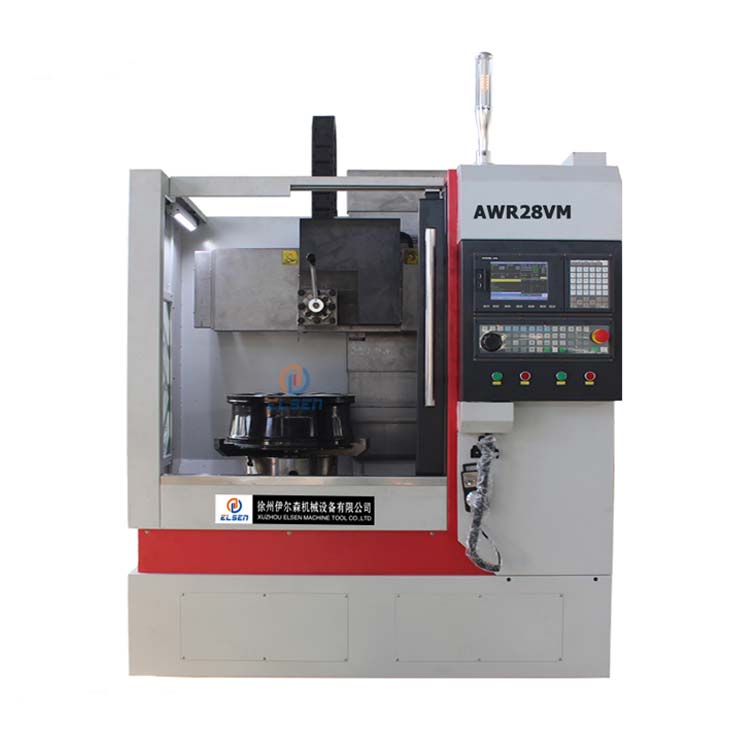

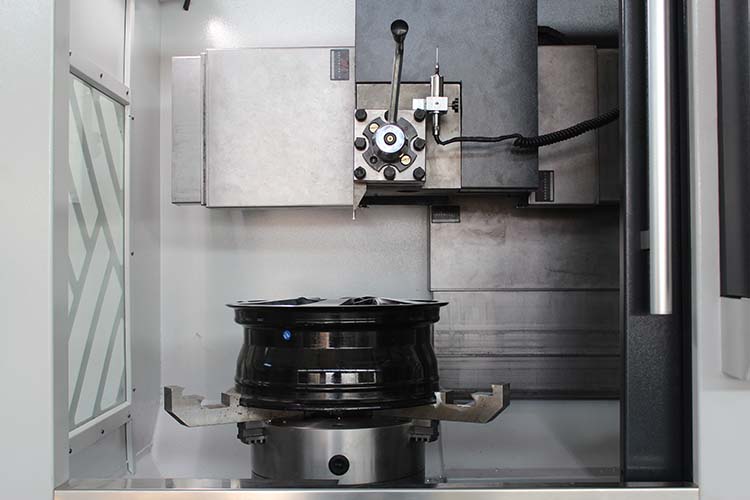

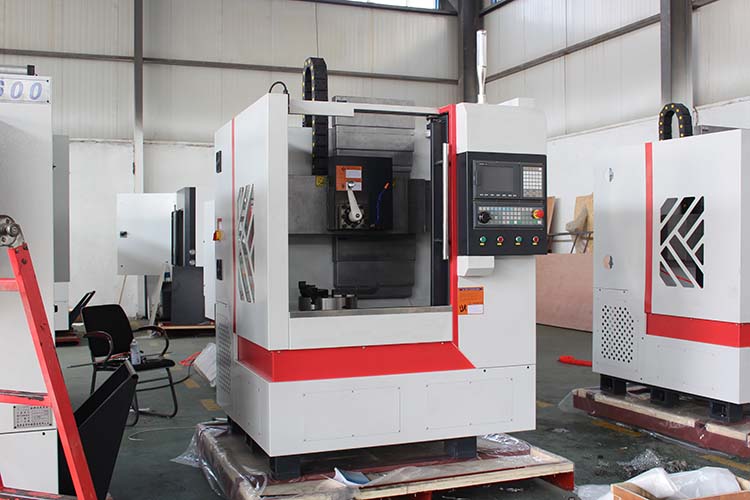

VERTICAL DIAMOND CUTTING WHEEL CNC LATHE
-Linear guide, rapid speed moving
-It is more easy to load and unload wheels for operators,strong load capacity
-Vertical processing, cutting stability, high efficiency
-The spindle speed can reach 1000RPM
-Automatic probing and automatic cutting,easy to operate the machine.
-Mini and light, occupies small space, it can process the maxiumum 30 inch of wheel.
| Item
| AWR28VM
|
| Max. swing over bed
| 820mm
|
| Max. process diameter of wheel
| 780mm
|
| Max. size of wheel repair
| 30inch
|
| Chuck diameter
| 320mm
|
| Spindle speed
| 50-1500rpm
|
| Cutting speed
| 0.1-1000mm/min
|
| Max. travel
| X/Z: 410/400mm
|
| Rapid speed
| X/Z: 8000mm/min
|
| Tool post
| Manual 4 position tool post
|
| Section of tool post
| 25×25mm
|
| Feed motor power
| X/Z: 1.6kw/10Nm
|
| Linear guide nominal width
| 30mm
|
| Accuracy
| 0.015mm
|
| Repeatability
| 0.012mm
|
| Main motor power
| 7.5kw
|
| Weight
| 1300kg
|
| Dimension
| 1460×1570×2030mm
|
| Package size
| 1600x1700x2200mm
|
Standard configuration:
1-3-Jaws Chuck（With Special Soft Jaws)
2-Manual Type Tool post ,four-station electric turret, can choose
3-Automatic lubrication system,Turning the cooling system.Work Lighting System
4-With probing system(TP300 Pioneer Sensing Probe TP300;)
5-Diamond Cutter 1 set
6-all casting bed and foot,make machine strong and ragidity
7-cnc controller SYNTEC
8-Full Enclose(Security Guard Door)
9-Specific Digital Optimization Software
10-Training Video U disc
11-Spindle frequency step less speed;
12-X / Z axis servo drive;
13-Voltage: 380v 50hz 3phases
14-Achieve the wheel surface profile measurement and data collection and Program Optimization,
15-Automatic precision repair and machining in accordance with the curve of the wheel surface
16- we provide free at-site training and can to local training.
